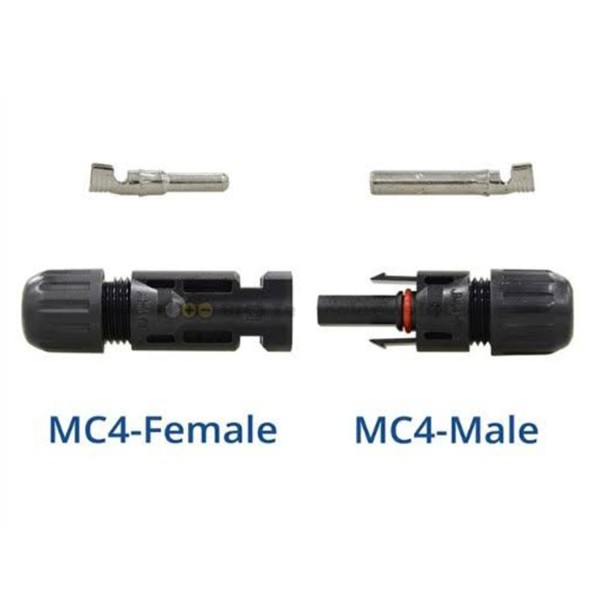

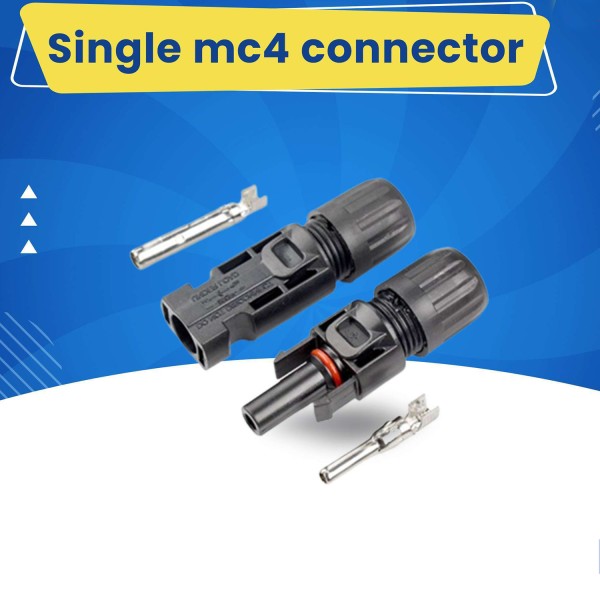

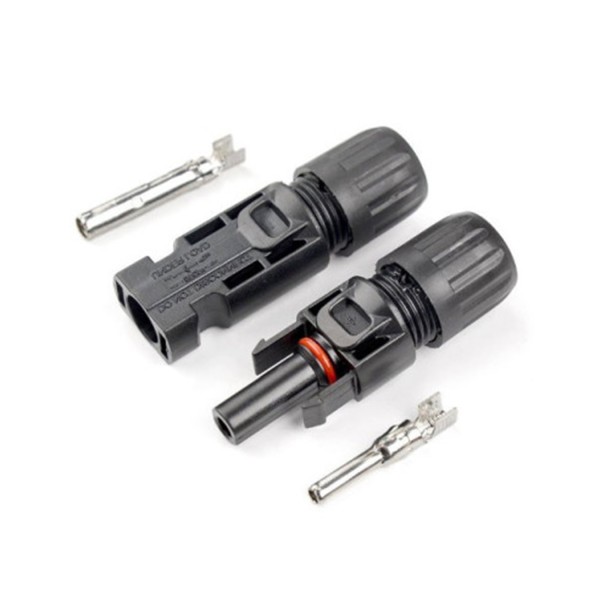

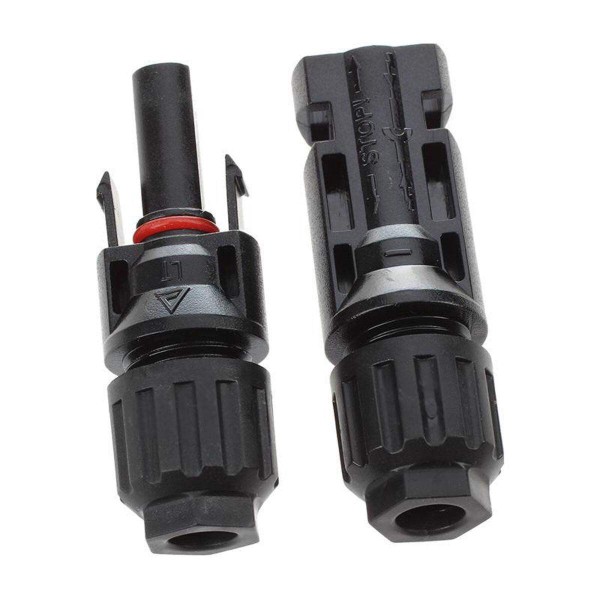

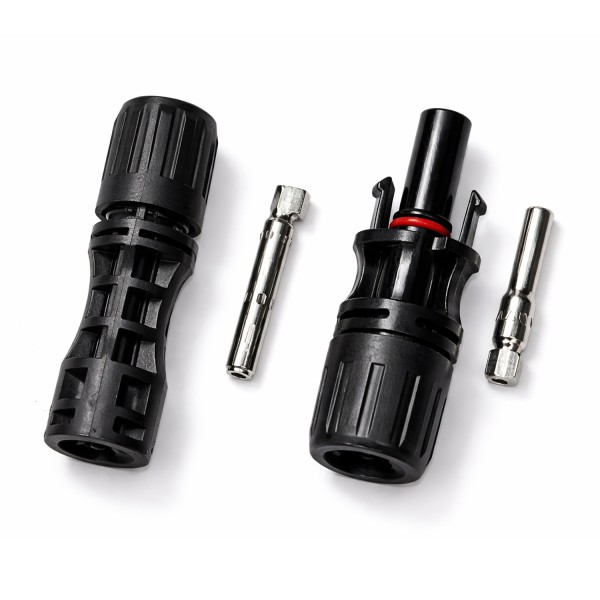

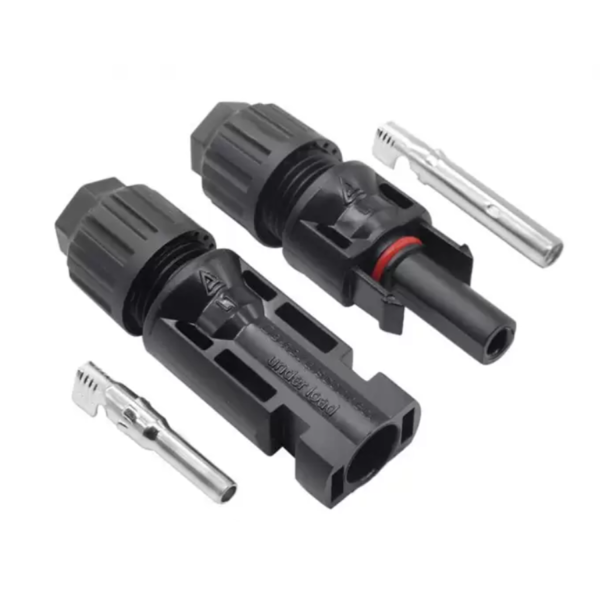

MC4 Connector male-female

• Compatible Size: 2.5/4/6mm2 (14/12/10AWG) cable
• Rated Voltage: 1500V
• Rated Current: 50A
• Material: Tinned Copper, PPO
• Waterproof Class: IP67
• Ambient Temperature: -40℃~100c

Product Name: Solar PV DC Connector
Insulation Material: PPO
Color: Black
Application: Solar PV Energy System
Type: PV Connector
Rate Voltage: 1500V
Weight: 20g

Features:
FOR YOUR SOLAR PANEL NEED: Your solar panel array is complete with our premium connectors!  Made with premium quality materials, these male and female connectors are ideal for any solar panels as they withstand extreme weather and high humidity.
PREMIUM QUALITY: Our female and male connector pairs is made with superior materials that are unaffected by bad weather such as snow, heavy rain, or extreme heat.  The solar panel connectors have an IP67 waterproof level and are resistant to dust buildup.
FOR YOUR HOME: The solar cable connectors are designed for photovoltaic solar systems with high mechanical requirements.  They complete a solar panel array, connecting solar panel cable extension, solar panel junction box cables etc.
TECHNICAL DETAILS: Our branch connectors can withstand temperatures between -40º F and +194º F. The solar panel connectors have a maximum voltage of 1000VDC and a 30A rated current.
COMPATIBILITY: These connectors are compatible with PV cables with different gauges (2.5mm²-6mm²/14AWG-10AWG)

Package Included:
1 Set Solar PV DC Connector
